High Pressure Valves

  • High-Pressure needle valves and ball valves designed for liquid and gas flow control
  • Pressure range 15,000 – 60,000 psi
  • Available with NPT connections from 1/4” to 1”
  • Available with MP/HP connections
  • Standard materials AISI 316L and PTFE
  • Non rotating stem prevents galling and scoring

Accessories and Adapters

A wide range of accessories for every needs such as elbows, tees, crosses, adapters and check valves

  • Pressure range 15,000 – 60,000 psi
    Available with NPT connections from 1/4” to 1”
  • Available with MP/HP connections
  • Standard materials AISI 316L

High Pressure Stainless Steel Tubings

Seamless High-Pressure tubings for a variety of high-pressure applications using liquid or gas the pressure medium, such as hydraulic installations, test benches and water-jet cutting equipment.

  • Standard materials: 316/316L
  • Operating temperature range: from –252°C to +694°C
  • External surface finish: bright finish
  • Bore surface finish: Min. 100 RMS = 2.3 Ra µm = 92 AARH
  • Standard certification: EN 20204 – 3.1
  • Standard non-destructive test: Eddy current ASTM A450/E426

Standard Size

  • 20,0000 psi (1378 bar) – 1/4”-3/8”-9/16”-3/4”-1”
  • 60,0000 psi (4137 bar) – 1/4”-3/8”-9/16”
Part Number OD (inch/mm) ID (inch/mm) WT (inch/mm) WP (psi/bar) Materials Data Sheet
HT20TU04A000100
1/4" (6.35)
0.109" (2.77)
0.070" (1.78)
20,000 (1379)
AISI 316/361L
Download
HT20TU06C000100
3/8" (9.53)
0.203"(5.16)
0.086"(2.18)
20,000 (1379)
AISI 316/316L
Download
HT20TU09E000100
9/16" (14.3)
0.312" (7.92)
0.125" (3.18)
20,000 (1379)
AISI 316/316L
Download
HT20TU12F000100
3/4" (19.1)
0.438" (11.1)
0.156" (3.96)
20,000 (1379)
AISI 316/316L
Download
HT20TU16G000100
1" (25.4)
0.562" (14.3)
0.219" (5.56)
20,000 (1379)
AISI 316/316L
Download
HT60TU04B000100
1/4" (6.35)
0.083" (2.11)
0.083" (2.11)
60,000 (4137)
AISI 316/316L
Download
HT60TU06E000100
3/8" (9.53)
0.125" (3.18)
0.125" (3.18)
60,000 (4137)
AISI 316/316L
Download
HT60TU09D000100
9/16" (14.3)
0.187" (4.75)
0.187" (4.75)
60,000 (4137)
AISI 316/316L
Download

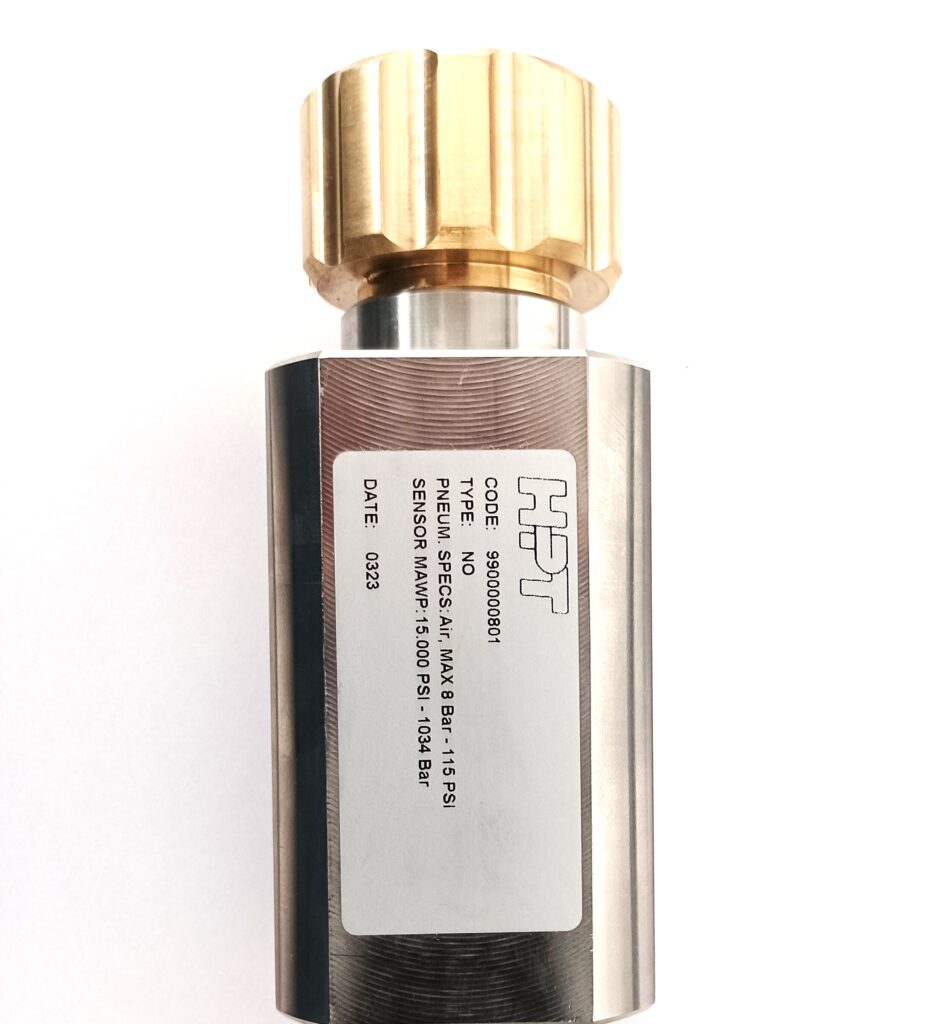

Pneumatic / Hydraulic Pressure Switches

3-way , 2-position pneumatic/hydraulic pressure valves, actuated by an adjustable pneumatic/hydraulic pressure switch.

Technical Features

  • Sensor MAWP: 15,000 psi (1034 bar)
  • Operating temperature range: from –10°C / +60°C
  • Valve operating pressure: 22÷116 psi / 1,5÷8 bar
  • Process media: Gas – Liquid
  • Process media: Filtered air
  • Standard materials: AISI 302 /AISI 316L / CW614N / FKM / FILLED PTFE
  • Sensor connection: 1/4″ BSPP
  • Valve connection: Push fittings Ø 4 mm
  • Mounting: Front – Rear – Side
  • Weight: 1,6 Kg
  • Setting range up to: 6,000 psi 8414 bar)

Optional

  • Setting range up to 10,000 psi (689 bar)
  • Setting range up to 15,000 psi (1034 bar)
  • Special cleaning: Oxygen service
Model Version Sensor MAWP Setting range Valve op. pressure Materials Data Sheet
9900000801
NO
15,000 psi (1034 bar)
up to 6,000 psi (414 bar)
22÷116 psi (1.5÷8 bar)
AISI 361L
9900000802
NC
15,000 psi (1034 bar)
up to 6,000 psi (414 bar)
22÷116 psi (1.5÷8 bar)
AISI 316L
